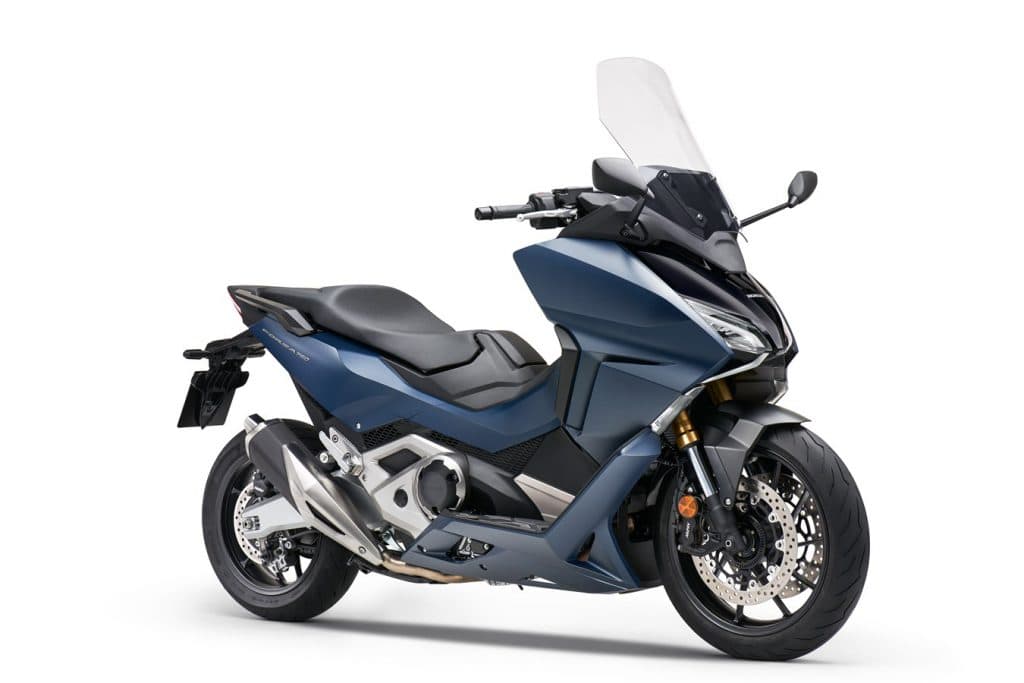

Honda Forza 750 – Gallery
Specifications Honda Forza 750
| ENGINE | |
| Type | Liquid-cooled 4-stroke 8-valve, SOHC parallel 2-cylinder |
| Displacement | 745cc |
| Bore & Stroke | 77mm x 80mm |
| Compression Ratio | 10.7 : 1 |
| Max. Power Output | 43.1kW @ 6,750rpm(35kW/6,000rpm) |
| Max. Torque | 69Nm @ 4,750rpm(65/4,000rpm) |
| Oil Capacity | 4.0L |
| FUEL SYSTEM | |
| Carburation | PGM-FI electronic fuel injection |
| Fuel Tank Capacity | 13.2 litres |
| Fuel Consumption | 3.6L/100km |
| ELECTRICAL SYSTEM | |
| Starter | Electric |
| Battery Capacity | 12V/11.2AH |
| ACG Output | 480W/5000rpm |
| DRIVETRAIN | |
| Clutch Type | Wet multiplate hydraulic 2-clutch |
| Transmission Type | 6-speed dual clutch transmission |
| Final Drive | Chain |
| FRAME | |
| Type | Diamond; steel pipe |
| CHASSIS | |
| Dimensions (L´W´H) | 2200m x 790mm x 1484mm |
| Wheelbase | 1580mm |
| Caster Angle | 27° |
| Trail | 104mm |
| Seat Height | 790mm |
| Ground Clearance | 135mm |
| Kerb Weight | 235kg |
| SUSPENSION | |
| Type Front | φ41mm USD,120mm stroke |
| Type Rear | Monoshock damper, Pro-Link swingarm, 120mm travel |
| WHEELS | |
| Type Front | Spoke Wheel |
| Type Rear | Spoke Wheel |
| Rim Size Front | 17M/C x MT3.50 |
| Rim Size Rear | 15M/C x MT4.50 |
| Tyres Front | 120/70-R17M/C |
| Tyres Rear | 160/60-R15M/C |
| BRAKES | |
| ABS System Type | 2-channel ABS |
| Type Front | 310mm double hydraulic disc with radial 4-piston caliper |
| Type Rear | 240mm single hydraulic disc with 1-piston caliper |
| INSTRUMENTS & ELECTRICS | |
| Instruments | 5inch color TFT Meter |
| Security System | Smart Key system |
| Headlight | LED |
| Taillight | LED |
